Merdeka 118
Merdeka 118
World's Second-Tallest Skyscraper
Location : downtown Kuala Lumpur, Malaysia Height : 678.9m Storey : 118 Architect : Fender Katsalidis (Australia) Ligting Design : FMS (U.S.) Completion : 2023
Curtain Wall
HOME
Lighting Design
0%

Curtain Wall

Fixture Installation

Combine with curtain wall drawing make the product operation manual provide to the curtain wall factory for references.

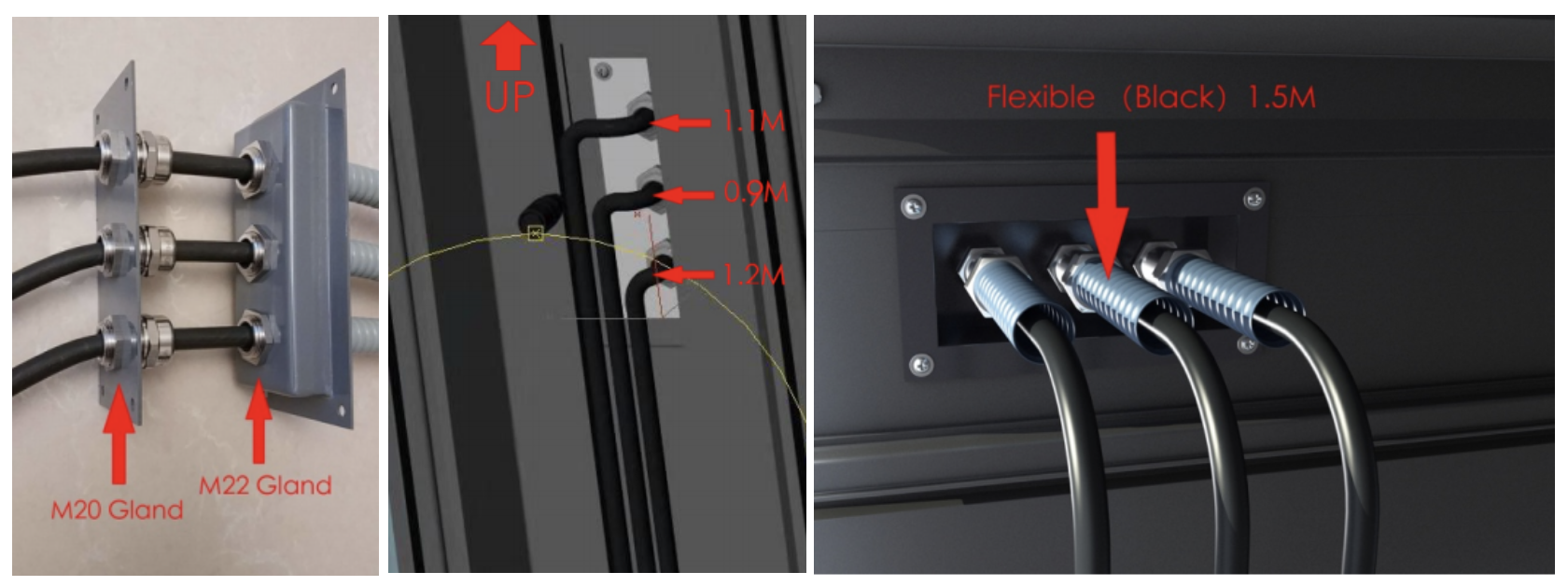

Fixture Wire

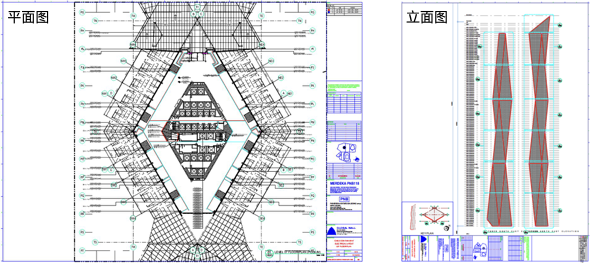

According to the curtain wall node drawing to outlet wire and cut out hole.
Ensure that the curtain wall cut-out plan does not damage the overall structure to ensure the safety of curtain wall panels.

Safety Provisions
  1. - Waterproof
  2. - Fireproof
  3. - Anti-leakage
Node Indication
HOME
Lighting Design
0%

Nod Indication

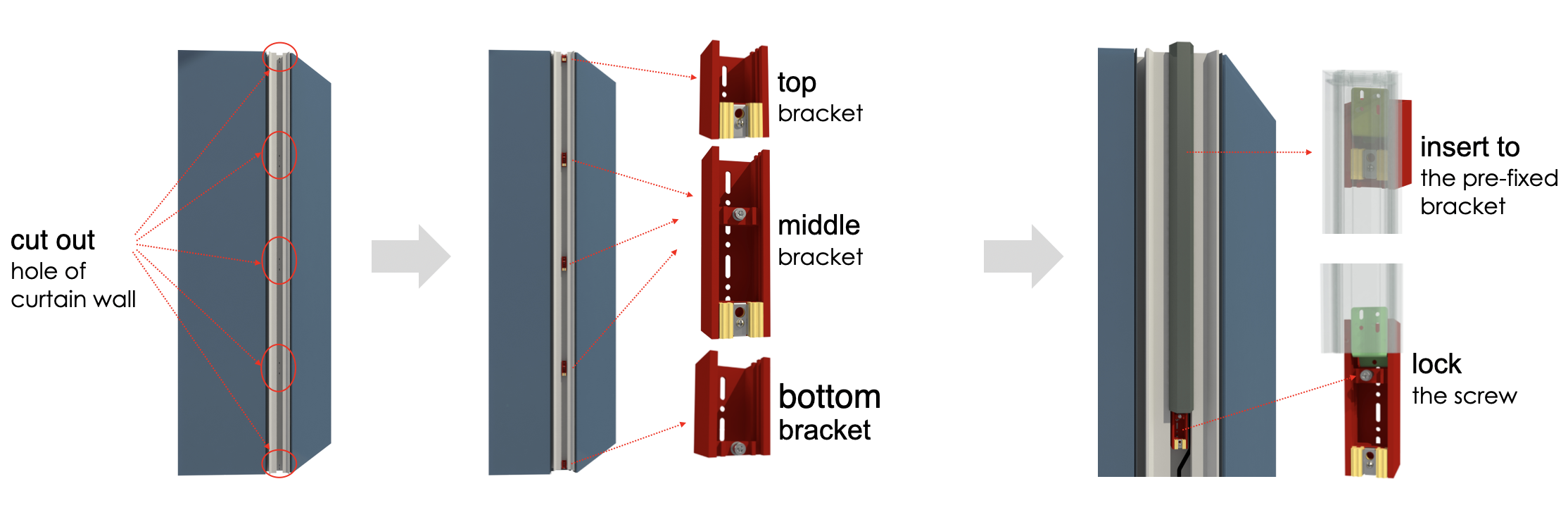

Fixture Installation Node

  1. Before the fixture is installed, the connector must be tightened in place
  2. Place the recessed part of the curtain wall, and the top bracket of the fixture must correspond to the pre-fixed bracket of the curtain wall.

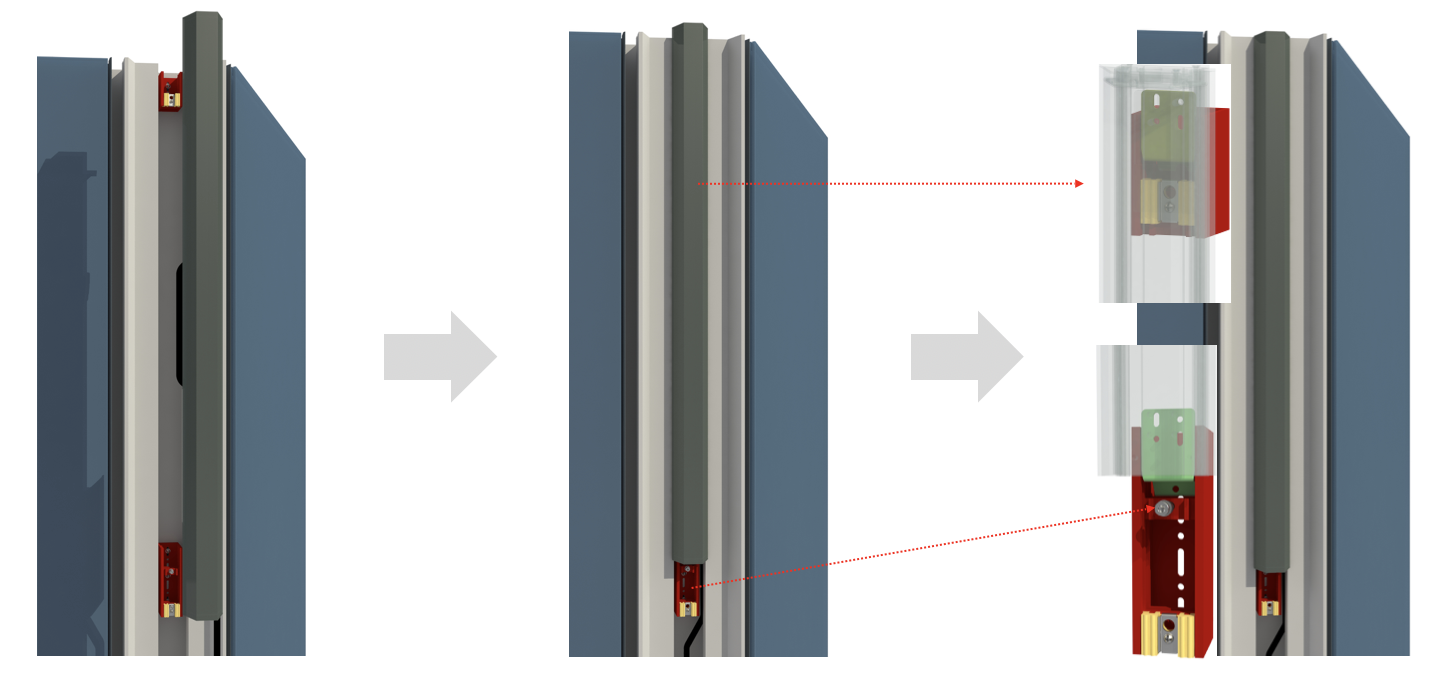

  3. The fixture is pulled down about 10mm and the corresponding screws on the pre-fixed bracket of the lower curtain wall are raised at the same time, so that the lower bracket of the fixture is accurately inserted into the pre-fixed bracket, and then locked the screws.

Outlet Wire Node

Strong Current Control
M&E Development
25%

M&E Development

Strong Current Control

HOME

Electromechanical and Production Specifications

  1. Electromechanical equipment certification standards, all pipelines, switching power supplies and lighting equipments meet the corresponding certification standards.It is also meet the requirements of the project submission for review. PNB118 uses the standard of the Malaysian local government——the SIRIM standard.
  2. Regarding coordination of electrical systems and other cooperating companys of the project, fire protection, ventilation, elevators.
  3. The final result will be show in the BIM system
BIM
M&E Development
50%

M&E Development

BIM System

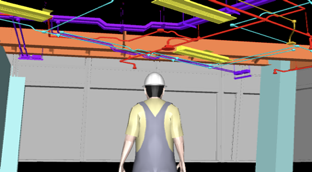

Electromechanical Installation BIM System

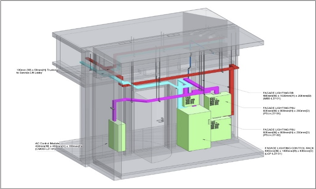

  1. Deepened electromechanical drawings as concept drawings

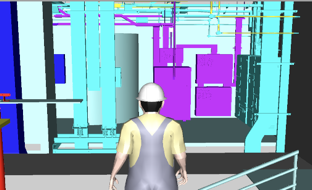

  2. Find problems through concept drawings through BIM system and solve them

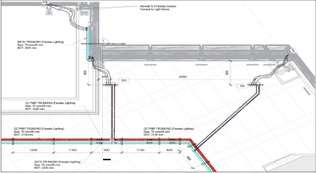

  3. ISD drawings were exported by BIM as project construction drawings. ISD drawings can more
  4. accurately reflect the relationship between the actual dimensions and the relevant units.
HOME

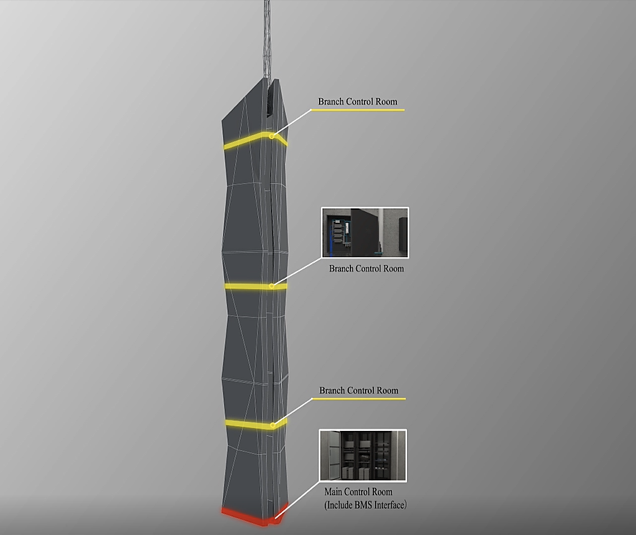

Control System
Control System Development
75%

Control System Development

Constrol System

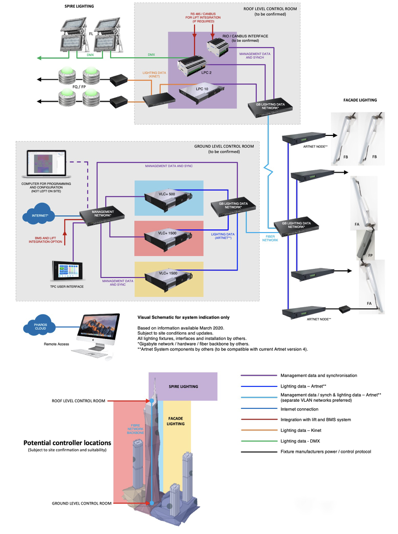

  1. The main control uses PHAROS system, the protocol is friendly, the data processing capacity is large, the transmission speed is fast.
  2. The coordination of the main control system and the product system.
  3. There are many non-standard types of plates, and the uniqueness of the control system loop is deepened.
  4. Product diversification, various brands into the system.
HOME
Quality Control
Project Implement
85%

Project Implement

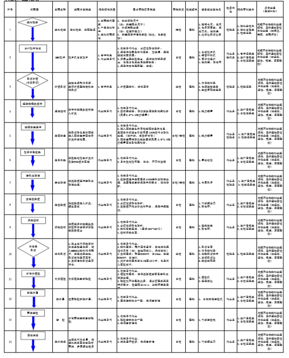

Quality Control

  1. There are strict testing standards before the production of fixtures
  2. Strict quality control system in the production process of fixtures
  1. Curtain wall integrated with luminaire approach inspection and test plan.
  1. Incoming inspection of curtain wall
HOME
Site Management
Project Implement
95%

Project Implement

Site Construction Management

HOME
  1. Worker training and entry time
  2. Ordering cycle of construction materials
  3. Determining the pipeline construction steps and construction time according to the construction progress of the curtain wall and indoor
  4. The installation time of the distribution box and control types of equipment under the conditions that the high and low-voltage rooms meet the construction conditions
  5. Divisional and overall commissioning time
